OPEN CEILING SOUND CONTROL SPRAY

CSI: 09 81 29 • 09 83 16

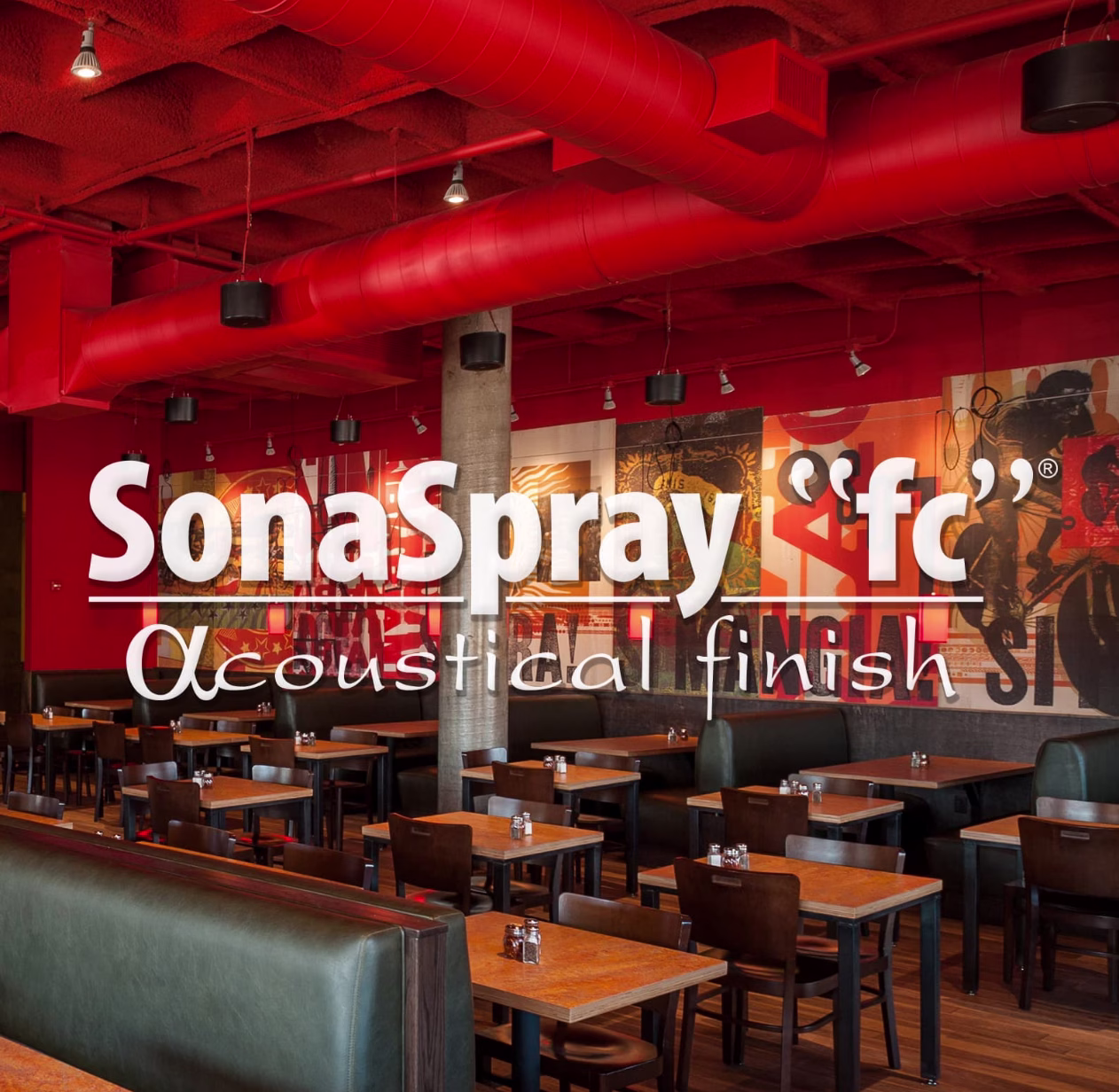

SonaSpray “fc” is an exposed ceiling acoustical insulation used for Acoustical control. SonaSpray “fc” provides an attractive, high-performance solution to acoustical and lighting design objectives in both new construction and renovation projects. SonaSpray “fc” has a refined texture and is available in four standard colors and specially-matched custom colors. If you have additional questions about this open ceiling soundproofing spray, contact us today!

ACOUSTICAL FINISH SYSTEM

SonaSpray “fc” begins with uniquely prepared cellulose fibers combined with natural fire retardants in a strict, quality-controlled manufacturing process producing a Class 1, Class A rated material.

SonaSpray “fc” is then applied from 1/2” up to 1” thick by an international network of professional contractors licensed by ICC. During application, the SonaSpray “fc” fibers combine with a water-based adhesive producing a durable exposed finish with exceptionally high bond and compression strength.

FIND AN INSTALLER

VIEW TECHNICAL DOCS →
VIEW COLOR CHART →

Sound Control

Offering a more refined finish, SonaSpray “fc” is the ideal solution for noisy environments where aesthetics and performance are key. A typical installation of 1/2″ thick on solid backing can reduce excessive noise by 65%.

This superior acoustical performance is measured using the room reverberation method per ASTM C 423 to calculate a noise reduction coefficient (NRC). SonaSpray “fc” significantly reduces reverberation time to improve ambient sound quality and speech intelligibility. Typical projects include gymnasiums, open-plan offices, schools, worship centers, restaurants, and hotels.

ASTM C 423 - SOUND ABSORPTION (NRC)

SonaSpray “FC” on Solid Backing
Inches125 Hz250 Hz500 Hz1,000 Hz2,000 Hz4,000 HzNRC
.5”0.000.140.490.871.000.990.65
.75”0.100.230.700.981.010.960.75
1”0.050.400.941.040.970.990.85
SonaSpray ”FC” on 1.5” Metal Deck
Inches125 Hz250 Hz500 Hz1,000 Hz2,000 Hz4,000 HzNRC
.75”0.170.580.910.890.870.840.80
1"0.220.621.021.091.051.000.95
SonaSpray ”FC” on 3” Metal Deck
Inches125 Hz250 Hz500 Hz1,000 Hz2,000 Hz4,000 HzNRC
.5”0.510.480.800.881.001.000.80
.75”0.550.550.941.011.031.000.90
1"0.630.731.081.041.011.000.95

CUSTOM COLORS AVAILABLE

SonaSpray “fc” is available in four standard colors can also be specified in specially matched custom colors.

Please contact us for more information on customizing your SonaSpray “fc” application.

SonaSpray “fc” Standard Color Chart

Note: Color selection will affect the final price.

Hotel V Nesplein
I.W. Young Auditorium
LinkedIn Omaha Headquarters
Samsung Plano Office Complex

Hotel V Nesplein

Amsterdam, The Netherlands

SonaSpray “fc” in Custom Color

CASE STUDY →

Located in Amsterdam’s vibrant Theatre District, Hotel V Nesplein combines luxury accommodations with a distinctive, design-forward aesthetic. To enhance acoustic comfort in the lobby, reception, and restaurant/bar areas, SonaSpray “fc” was applied to the exposed concrete ceilings, absorbing excess noise and reducing reverberation in these active social spaces. Produced in a custom color exclusively for the hotel, the acoustical finish seamlessly integrates with the property’s unique interior design while creating a more comfortable and enjoyable experience for guests.

SUSTAINABILITY

SonaSpray “fc” is made from 80% Pre-Consumer Recycled Content and inventoried to 1,000 PPM in accordance with the HPD Collaborative.

SonaSpray “fc” is UL GREENGUARD Gold certified and compliant with LEED v4: Low-Emitting Materials, CDHP/California Section 01350, SCAQMD Rule 1168, and CHPS – Acoustical Ceiling. Additionally, SonaSpray “fc” provides high light-reflectivity, superior acoustical performance, and may contribute to sustainable credit categories for green-building initiatives.
SonaSpray “fc” does not contain silica dust, asbestos, mineral or glass fibers, or PCBs.

Sustainable Credit Categories - LEED V4

MATERIALS + RESOURCES:

RECYCLED CONTENT:80% Pre-Consumer
REGIONAL MATERIALS: Manufactured by International Cellulose Corporation in Houston, TX.
MATERIAL INGREDIENT REPORTING: Inventoried to 1,000 PPM in accordance with the HPD Collaborative.



INDOOR ENVIRONMENTAL QUALITY:

INDOOR AIR QUALITY:
UL GREENGUARD Gold Certified
May Contribute Towards:
LEED v4: Indoor Air Quality Assessment
LEED v4: Enhanced Indoor Air Quality Strategies

THERMAL COMFORT:
Ure-K has exceptionally low heat-loss characteristics with an R-Value of 3.6 per inch, contributing R-4.5 at the standard 1.25″ application thickness.

ACOUSTICAL PERFORMANCE

LOW-EMITTING MATERIALS:
M1 Classified as a Low-Emitting Building Material Compliant With:
LEED v4: Low-Emitting Materials
CDHP/California Section 01350
SCAQMD Rule 1168
CHPS – Acoustical Ceiling

TALK TO AN EXPERT

TECHNICAL DATA

ASTM Standards Compliance
  • ASTM C 423 – Sound Absorption
  • ASTM D 2244 – Light Reflectance
  • ASTM E 84 – Surface Burning Characteristics
  • ASTM E 736 – Cohesion/Adhesion – Bond Strength
  • ASTM E 761 – Compressive Strength
  • ASTM E 859 – Air Erosion
ASTM C 423 – Sound Absorption (NRC)
Inches125 Hz250 Hz500 Hz1,000 Hz2,000 Hz4,000 HzNRC
.5”0.000.140.490.871.000.990.65
.75”0.100.230.700.981.010.960.75
1”0.050.400.941.040.970.990.85
Inches125 Hz250 Hz500 Hz1,000 Hz2,000 Hz4,000 HzNRC
.75”0.170.580.910.890.870.840.80
1"0.220.621.021.091.051.000.95
Inches125 Hz250 Hz500 Hz1,000 Hz2,000 Hz4,000 HzNRC
.5”0.510.480.800.881.001.000.80
.75”0.550.550.941.011.031.000.90
1"0.630.731.081.041.011.000.95
ASTM D 2244 - Light Reflectance
Standard ColorLight Reflectance Value (LRV)
White84+
Light Gray73+
Gray45+
Tan46+
Black17+
ASTM E 84 - Surface Burning Characteristics

SonaSpray “fc” has a Class 1, Class A fire rating per ASTM E 84, UL 723.

  • Flame Spread – 5
  • Smoke Developed – 5
ASTM E 736 – Cohesion/Adhesion – Bond Strength
  • SonaSpray “fc”: Bond Strength is greater than 600 psf
  • SonaSpray “fc”: With Dura-K is greater than 900 psf
ASTM E 761 - Compressive Strength
  • SonaSpray “fc” >400 psf
  • SonaSpray “fc” with Dura-K >600 psf
Miscellaneous Codes & Approvals
    • Federal Defense Logistics Agency Cage Code: ONJU2
    • Federal Specification – SS-S-111C
    • Corps of Engineers Guide Specifications – CE-201.01
    • Department of the Navy Guide Specifications – NFGS-07218
    • Los Angeles – RR-24311

    SonaSpray “fc” meets IBC 2009 Section 803.10 Stability requirements for Interior Finish materials.

DURABILITY

The adhesive used to apply SonaSpray “fc” provides a durable and resilient bond. SonaSpray “fc” will resist impact and abrasion without cracking or spalling, often typical with cementitious or plaster-based materials.

In projects requiring additional durability, SonaSpray “fc” Dura-K may be specified to result in even greater bond and compressive strength without reducing the acoustical performance.

SUBSTRATE COMPATIBILITY

Our patented water-based adhesive adheres to virtually any properly prepared substrate and ceiling configuration including metal deck, barrel-vaults, concrete “T” corrugated decks, gypsum, wood, concrete, and other complex surfaces.

Surfaces to receive SonaSpray “fc” are to be inspected prior to installation to determine if pretreatment is required.

TYPICAL PROJECTS

SonaSpray “fc” is typically used as an exposed ceiling finish to reduce excessive noise and reverberation and provide versatile color options. It is appropriate for interior spaces such as gymnasiums, open-plan offices, schools, worship centers, restaurants, and hotels.

Please see our Projects Gallery for more examples of how SonaSpray “fc” can be customized to meet your project requirements.
