K-13 HIGH-R SYSTEM
K-13 Spray-Applied Thermal and Acoustical Insulation is an exposed ceiling finish requiring no additional barriers or materials. K-13 meets project requirements for thermal insulation, noise control with an attractive natural texture that is available in standard and custom colors.
HOW IT WORKS
PERFORMANCE & EFFICIENCY
With a mechanically supported system, K-13 High-R decreases risk for fallout found with typical high-build installations that require higher R-Value requirements for your project.

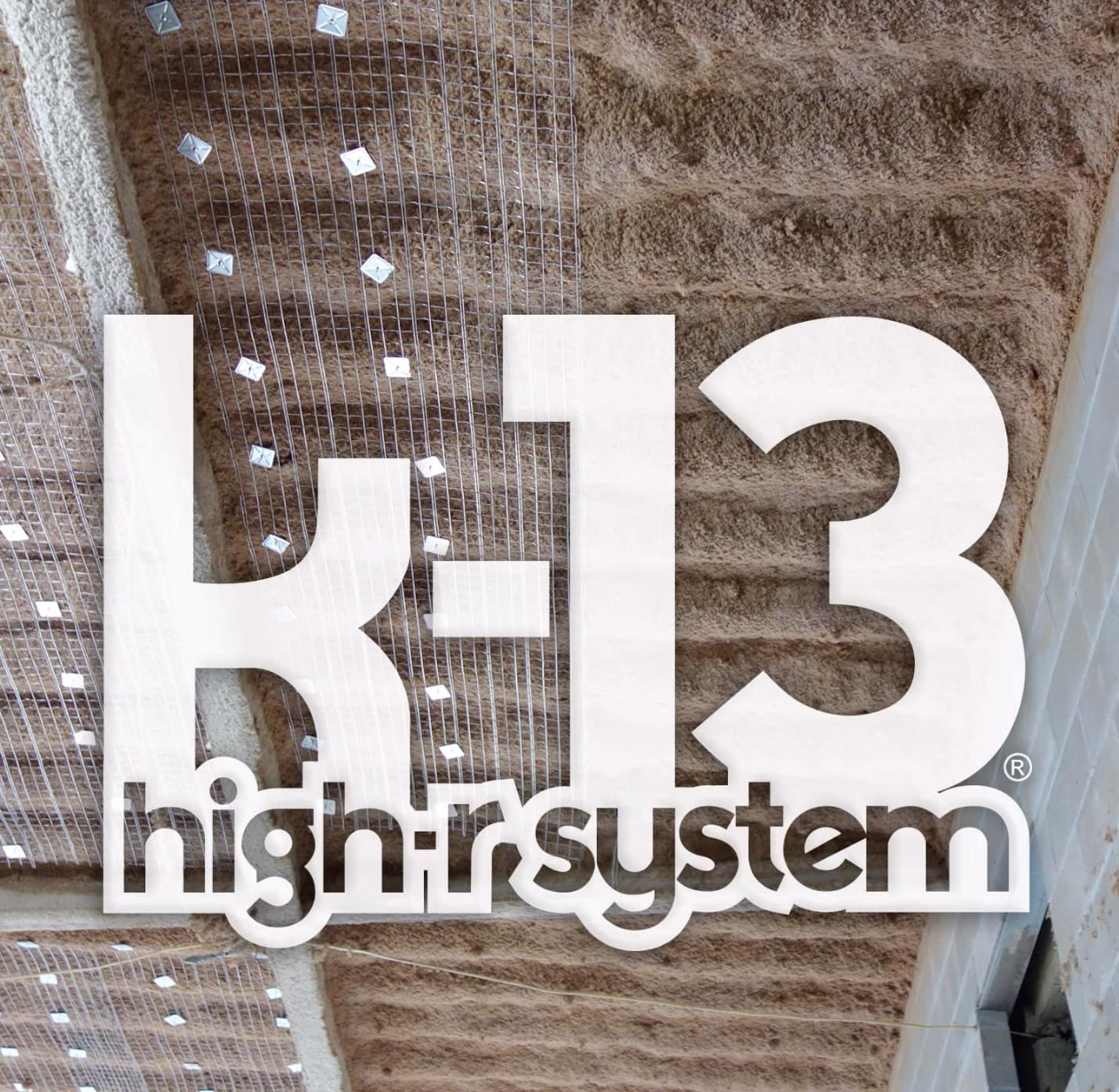

The K-13 High-R System begins with installing stickpins to the substrate and applying the first layer of K-13 up to 5” thick. This first layer of insulation is secured in place using StructaLath III, a unique welded lath wiring. The second layer of K-13 is then applied to meet project specifications for R-Value and color.
STEP 1

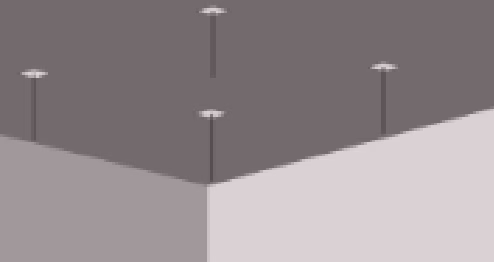

Install 6” stick pins starting 3” from wall in an approximate 16”x16” grid-like pattern.

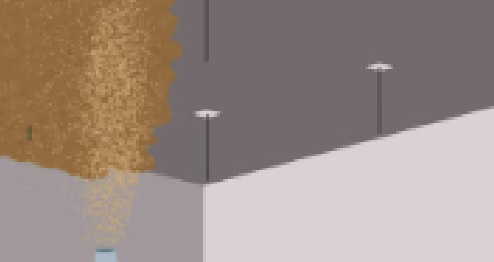

STEP 2
STEP 3

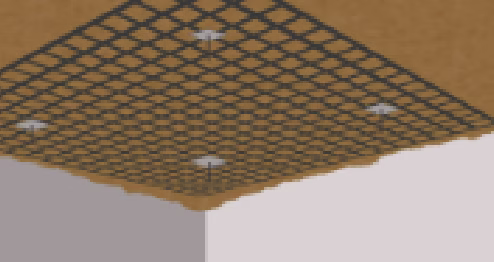

STEP 4

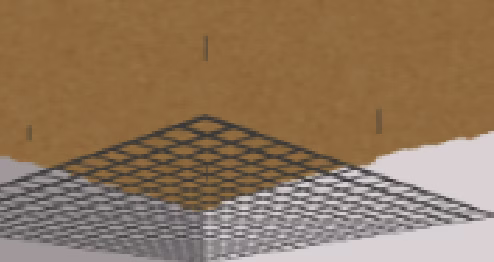

STEP 5
THERMAL CONTROL
K-13 is sprayed-in-place, filling cracks, seams, and voids to form a monolithic coating over the substrate helping to reduce air infiltration. Unlike prefabricated insulations, K-13 has no voids or compressed areas to reduce thermal efficiency, resulting in exceptionally low heat-loss characteristics and an R-Value of 3.7 per inch.
With the K-13 High-R System, K-13 is applied up to 10” to meet your higher thermal requirements, making it ideal for projects such as Parking Garages, Event Centers, Pre-Engineered Metal Buildings, or Stadiums.
K-13 R-VALUE CHART
| Thickness | R-Value |
|---|---|
| 1” | 3.7 |
| 2” | 7.5 |
| 3” | 11.25 |
| 4” | 15 |
| 5” | 18.75 |
| 6” | 22.5 |
| 7” | 26.25 |
| 8” | 30 |
| 9” | 33.75 |
| 10” | 37.5 |
SUSTAINABILITY
K-13 is UL GREENGUARD Gold certified and compliant with LEED v4: Low-Emitting Materials, CDHP/ California Section 01350, SCAQMD Rule 1168, and CHPS- Acoustical Ceiling. Additionally, K-13’s thermal and acoustical performance may contribute to sustainable credit categories for green-building initiatives.
K-13 does not contain silica dust, asbestos, mineral or glass fibers, or PCB’s.
TECHNICAL DATA
ASTM Standards Compliance
- ASTM C 423 – Sound Absorption
- ASTM C 518 – Thermal Conductivity
- ASTM C 739 – Cellulosic Fiber
- ASTM C 1149 – Spray-Applied Cellulose Insulation
- ASTM D 2244 – Light Reflectance
- ASTM E 84 – Surface-Burning Characteristics
- ASTM E 90 – Sound Transmission
- ASTM E 736 – Cohesion/Adhesion – Bond Strength
- ASTM E 759 – Bond Deflection
- ASTM E 859 – Air Erosion
- ASTM E 1042 – Acoustical Absorption
ASTM C 423 – Sound Absorption (NRC)
K-13 on Solid Backing
| Inches | 125 Hz | 250 Hz | 500 Hz | 1,000 Hz | 2,000 Hz | 4,000 Hz | NRC |
|---|---|---|---|---|---|---|---|
| 1” | 0.11 | 0.32 | 0.84 | 0.99 | 1.01 | 0.98 | 0.80 |
| 1.5" | 0.21 | 0.46 | 1.06 | 1.13 | 1.02 | 1.00 | 0.90 |
| 1.75” | 0.30 | 0.74 | 1.14 | 1.06 | 0.99 | 0.98 | 1.00 |
| 2” | 0.47 | 0.90 | 1.06 | 1.06 | 1.08 | 1.07 | 1.00 |
| 3” | 0.57 | 0.99 | 1.04 | 1.03 | 1.00 | 0.98 | 1.00 |
| 4” | 0.84 | 1.06 | 1.01 | 1.03 | 1.00 | 0.98 | 1.05 |
| 5” | 0.99 | 0.89 | 1.05 | 1.03 | 1.00 | 1.00 | 1.00 |
K-13 on 1.5” Metal Deck
| Inches | 125 Hz | 250 Hz | 500 Hz | 1,000 Hz | 2,000 Hz | 4,000 Hz | NRC |
|---|---|---|---|---|---|---|---|
| 1.5" | 0.36 | 0.89 | 1.26 | 1.07 | 1.01 | 1.00 | 1.05 |
| 3" | 0.97 | 1.04 | 1.13 | 0.99 | 0.95 | 0.98 | 1.05 |
K-13 on 2” Metal Deck
| Inches | 125 Hz | 250 Hz | 500 Hz | 1,000 Hz | 2,000 Hz | 4,000 Hz | NRC |
|---|---|---|---|---|---|---|---|
| 1" | 0.39 | 0.63 | 0.96 | 0.99 | 1.04 | 1.06 | 0.90 |
| 2" | 0.55 | 0.99 | 1.13 | 1.06 | 1.05 | 1.10 | 1.05 |
K-13 on 3” Metal Deck
| Inches | 125 Hz | 250 Hz | 500 Hz | 1,000 Hz | 2,000 Hz | 4,000 Hz | NRC |
|---|---|---|---|---|---|---|---|
| 1" | 0.50 | 0.66 | 0.97 | 1.02 | 1.05 | 1.03 | 0.95 |
| 1.5" | 0.55 | 0.92 | 1.11 | 1.02 | 0.95 | 0.99 | 1.00 |
| 2.75" | 0.69 | 0.98 | 1.17 | 1.03 | 0.97 | 1.04 | 1.05 |
All acoustical testing was performed by an NVLAP-accredited laboratory. Testing is available on request.
ASTM C 518 – Thermal Conductivity
R-Value: 3.7 per inch
K-13 R-Value Chart | ASTM C 518
| Thickness | R-Value |
|---|---|
| 1” | 3.7 |
| 2” | 7.5 |
| 3” | 11.25 |
| 4” | 15 |
| 5” | 18.75 |
| 6” | 22.5 |
| 7” | 26.25 |
| 8” | 30 |
| 9” | 33.75 |
| 10” | 37.5 |
ASTM D 2244 - Light Reflectance
K-13 Standard Color Light Reflectance Value
| Standard Color | Light Reflectance Value (LRV) |
|---|---|
| White | 84+ |
| Light Gray | 73+ |
| Gray | 45+ |
| Tan | 46+ |
| Black | 17+ |
ASTM E 736 – Cohesion/Adhesion – Bond Strength
K-13: Bond Strength is greater than 150 psf
ASTM E 84 – Surface-Burning Characteristics
K-13 has a Class 1, Class A fire rating per ASTM E 84, UL 723, NFPA 255, and UBC 42.
Flame Spread – 5
Smoke Developed – 5
Underwriters’ Laboratories – Ref. #R5499
K-13 has been rated and approved by Factory Mutual Research Corporation.
Miscellaneous Codes & Approvals
- Underwriters Laboratories – Classified Code Compliance Report UL ER 5499
- Factory Mutual Research
- Federal Defense Logistics Agency Cage Code: ONJU2
- Federal Specification – SS-S-111C
- Corps of Engineers Guide Specifications – CE-201.01
- Department of the Navy Guide Specifications – NFGS-07218
- EPA 40 CFR Part 248
- Los Angeles – RR-24311
- New York – MEA 65-96-M
- Meets California Bureau of Home Furnishings Standards
- Resource Conservation and Recovery Act
K-13 meets IBC 2009 Section 803.10 Stability requirements for Interior Finish materials.
